Digital Load Cells
Our high-quality digital load cells provide advantages for all industries. Through our patented capacitive technology, you get superb accuracy and load cells that tolerate up to ten times overload. Pre-calibration makes installation and commissioning fast and simple. With no need for mounting devices, they are easy to clean, making them the perfect weighing solution for food, pharma and biotech. Eilersen digital load cells are available in capacities up to 500 tons, in accuracy up to OIML C6, and in ATEX and IECEx certified versions.
Beam Load Cell BL (BL-Ex)
Robust digital beam load cell in a hygienic (aseptic) design for dynamic weighing, process weighing, filling, packaging and general weighing in food, pharma and life science applications. The new hygienic EHEDG compliant…
Type:
BL (Non-ATEX) BL-Ex (ATEX)
Capacity (Emax):
10, 20, 30, 50, 100, 150, 250, 500, 1000 kg
Accuracy:
Industrial 0.10%, Precision 0.05%, High Precision 0.025%
Overload Tolerance:
500% at 5kg, 200% at 1000 kg capacity
Beam Load Cell SBL (SBL-Ex)
Compact digital beam load cell for single-use bag weighing, process weighing, force measurement, and general weighing in food, biopharmaceutical, and life science applications. This load cell is a shorter version of the BL…
Type:
SBL
Capacity (Emax):
1, 2, 5, 10, 20, 30, 50 kg
Accuracy:
High Precision 0.025%
Overload Tolerance:
500% at 1 kg, 200% at 50 kg capacity
Beam Load Cell BM (BM-Ex) 70
Robust digital heavy duty ATEX certified beam load cell produced in stainless steel and hermetically sealed to IP68 for process weighing, industrial weighing and tough applications such as on-board truck weighing, offshore,…
Type:
BM 70 (Non-ATEX) BM-Ex 70 (ATEX)
Capacity (Emax):
1000, 1500, 2000, 3000 kg
Accuracy:
Industrial 0.10%, Precision 0.05%, High Precision 0.025%
Overload Tolerance:
Up to 500% of rated capacity
Beam Load Cell BM (BM-Ex) 80
Robust digital heavy duty ATEX certified beam load cell produced in stainless steel and hermetically sealed to IP68 for process weighing, industrial weighing and tough applications such as on-board truck weighing, offshore,…
Type:
BM 80 (Non-ATEX) BM-Ex 80 (ATEX)
Capacity (Emax):
5000, 6000, 7000 kg
Accuracy:
Industrial 0.10%, Precision 0.05%, High Precision 0.025%
Overload Tolerance:
Up to 500% of rated capacity
Compression Load Cell CL (CL-Ex)
NEW hygienic (aseptic) compression load cell types CL and CL-Ex in EHEDG compliant design. These robust digital compression load cells are produced in electropolished stainless steel and hermetically sealed to IP68 for…
Type:
CL (Non-ATEX) CL-Ex (ATEX)
Capacity (Emax):
50, 100, 150, 250, 500, 1000, 1500, 2000, 3000, 4000, 5000 kg
Accuracy:
Industrial 0.10%, Precision 0.05%, High Precision 0.025%
Overload Tolerance:
Up to 500% of rated capacity
Compression Load Cell CM (CM-Ex) 125
NEW hygienic (aseptic) compression load cell types CM and CM-Ex with 125mm diameter in EHEDG compliant design. These robust digital compression load cells are available in capacities up to 20 tons and produced in…
Type:
CM 125 (Non-ATEX) CM-EX 125(ATEX)
Capacity (Emax):
6000, 8000, 10000, 12000, 15000, 20000 kg
Accuracy:
Industrial 0.10%, Precision 0.05%, High Precision 0.025%
Overload Tolerance:
Up to 300% of rated capacity
Compression Load Cell CM (CM-Ex) 150
NEW hygienic (aseptic) compression load cell types CM and CM-Ex with 150mm diameter in EHEDG compliant design. These robust digital compression load cells are available in capacities up to 50 tons and produced in…
Type:
CM 150 (Non-ATEX) CM-EX 150 (ATEX)
Capacity (Emax):
25000, 30000, 40000, 50000 kg
Accuracy:
Industrial 0.10%
Overload Tolerance:
Up to 300% of rated capacity
Compression Load Cell DLC (DLC-Ex)
Capacitive load cells with integrated lift-off protection (Patent Pending) for installations e.g. in areas with seismic activity, outdoor silos and high shear mixers. These robust digital compression load cells in EHEDG…
Type:
DLC (Non-ATEX) DLC-Ex (ATEX)
Capacity (Emax):
50, 100, 150, 250, 500, 1000, 1500, 2000, 3000, 4000, 5000 kg
Accuracy:
Industrial 0.10%, Precision 0.05%, High Precision 0.025%
Overload Tolerance:
Up to 300% of rated capacity
Compression Load Cell DMC (DMC-Ex) 125
Capacitive load cells with integrated lift-off protection (patented) designed for large capacities such as process weighing in areas with seismic activity and outdoor silos. The robust digital load cells are made of stainless…
Type:
DMC 125 (Non-ATEX) DMC-Ex 125 (ATEX)
Capacity (Emax):
6000, 8000, 10000, 12000, 15000, 20000 kg
Accuracy:
Industrial 0.10%, Precision 0.05%, High Precision 0.025%
Overload Tolerance:
Up to 300% of rated capacity
Compression Load Cell DMC (DMC-Ex) 150
Capacitive load cells with integrated lift-off protection (patented) designed for large capacities such as process weighing in areas with seismic activity and outdoor silos. The robust digital load cells are made of stainless…
Type:
DMC 150 (Non-ATEX) DMC-Ex 150 (ATEX)
Capacity (Emax):
30000, 40000, 50000 kg
Accuracy:
Industrial 0.10%
Overload Tolerance:
Up to 300% of rated capacity
Compression Load Cell CH (CH-Ex) 100
Robust digital ATEX and IECEx certified heavy duty compression load cell produced in stainless steel and hermetically sealed to IP68 for installation under large silos, tanks, vessels and heavy duty applications. The CH-Ex…
Type:
CH100 (Non-ATEX) CH-Ex100 (ATEX)
Capacity (Emax):
100 tons
Accuracy:
Industrial 0.25%
Overload Tolerance:
Up to 300% of rated capacity
Compression Load Cell CH (CH-Ex) 500
Robust digital ATEX and IECEx certified heavy duty compression load cell produced in stainless steel and hermetically sealed to IP68 for installation under large silos, tanks, vessels and heavy duty applications. The CH-Ex…
Type:
CH500 (Non-ATEX) CH-Ex500 (ATEX)
Capacity (Emax):
200, 300, 400, 500 tons
Accuracy:
Industrial 0.25%
Overload Tolerance:
Up to 300% of rated capacity
Single Point Load Cell SPSX (SPSX-Ex)
The robust digital single point load cell type SPSX is produced in stainless steel and hermetically sealed to IP69K. The main applications are graders, multihead weighers, checkweighers, filling machines, belt scales,…
Type:
SPSX (Non-ATEX) SPSX-Ex (ATEX)
Capacity (Emax):
5, 10, 20, 30, 50, 100, 150, 200 kg
Accuracy:
Industrial 0.025%, Precision 0.015%, High Precision 0.010%
Overload Tolerance:
Up to 1000% of rated capacity
Single Point Load Cell SPSXL (SPSXL-Ex)
The robust digital single point load cell type SPSXL in stainless steel is hermetically sealed to IP69K. The main applications are graders, checkweighers, filling and dosing equipment, belt scales, platform scales, bench…
Type:
SPSXL (Non-ATEX) SPSXL (ATEX)
Capacity (Emax):
20, 30, 50, 100, 150, 200, 250, 300 kg
Accuracy:
Industrial 0.025%, Precision 0.015%
Overload Tolerance:
Up to 1000% of rated capacity
Single Point Load Cell XBL (XBL-Ex)
The robust digital single point load cell type XBL in stainless steel is hermetically sealed to IP68K. The load cell is developed for machine builders who have tasks within dynamic weighing, multihead weighers, factory…
Type:
XBL (Non-ATEX) XBL-Ex (ATEX)
Capacity (Emax):
3, 5, 10, 15, 20, 30, 50, 100 kg
Accuracy:
Industrial 0.025%, Precision 0.015%, High Precision 0.010%
Overload Tolerance:
Up to 1000% of rated capacity

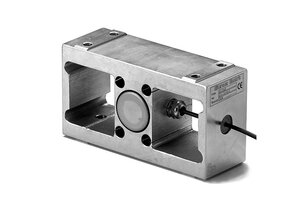

Web Tension Load Cell TL 101A
The robust digital TL 101A and TL 101A-ST load cells are designed primarily for measuring web tension. The load cell type TL 101A-ST offers extra safety in applications with heavy rollers and increased temperature…
Type:
TL 101A or TL 101A-ST
Capacity (Emax):
500N, 1, 2, 5 kN
Accuracy:
Industrial 0.25%
Overload Tolerance:
Up to 1000% of rated capacity

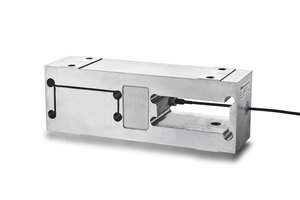

Web Tension Load Cell TL 101B
The robust digital TL 101B load cell is a heavy duty version designed primarily for measuring web tension. The TL 101B load cell has same dimensions as the ABB PFTL 101B load cell.
Type:
TL 101B
Capacity (Emax):
2, 5, 10, 20 kN
Accuracy:
Industrial 0.25%
Overload Tolerance:
Up to 1000% of rated capacity
Tension Load Cell TM ATEx Certified
The robust digital tension load cell type TM is produced in stainless steel and used for weighing suspended vessels, in cranes, lifts and for measuring forces in heavy duty equipment. ATEX versions are available.
Type:
TM
Capacity (Emax):
2000, 5000, 10000 kg
Accuracy:
Industrial 0.10%
Overload Tolerance:
Up to 1000% of rated capacity

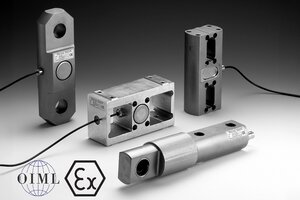

Customized Digital Load Cells
Eilersen designs customized robust digital load cells for industrial applications like on-board truck weighing, crane scales, offshore installations, web tension measurement and heavy duty applications. Eilersen also develops…
Type:
Customized Digital Load Cells
Capacity (Emax):
Bending beam load cells up to 50 tons. Compression load cells up to 500 tons. Tension load cells up to 100 tons. Web tension measurement up to 100 kN
Accuracy:
Depends on load cell and application
Overload Tolerance:
Up to 1000% of rated capacity
Robust High-quality Digital Load Cells
Robust and reliable digital load cells
Our stainless steel, hermetically sealed load cells tolerate high overloads, sideloads and torsion, making them ideal for tough industrial applications across all industries.
Accuracy up to 99.99%
Eilersen digital load cells ensure high accuracy, factory-calibrated and compensated for reliability up to 99.99%, making them a top choice for precision weighing.
Easy installation
With no mounting devices needed, Eilersen's patented capacitive technology simplifies installation. With pre-calibrated, plug-and-play load cells, there's no need for calibration. Eilersen load cells can use cables up to 100 meters without affecting calibration, and cables can be replaced without re-calibration.
No maintenance required
Eilersen digital load cells require no regular maintenance. Integrated diagnostics allow for monitoring of individual load cells, and any issues are quickly flagged for easy troubleshooting.
OIML and atex certified
Eilersen load cells are available with OIML and ATEX/IECEx certifications for use in harzardous environments (zone 1, 2, 21, 22).
Fieldbus interfaces
Eilersen digital load cells support multiple fieldbus interfaces, including Profibus DP, PROFINET, EtherCAT, Ethernet IP, Modbus TCP/IP, 4-20mA, and 0-10Vdc.
