Tension Load Cell TM ATEx Certified

The robust digital tension load cell type TM is produced in stainless steel and used for weighing suspended vessels, in cranes, lifts and for measuring forces in heavy duty equipment. ATEX versions are available.

Type: TM Capacity (Emax): 2000, 5000, 10000 kg Accuracy: Industrial 0.10% Overload Tolerance: Up to 1000% of rated capacity

Request a quote Print datasheet

Special Features

Made in Denmark
Robust capacitive technology
Patented high reliability capacitive sensor
High tolerance of up to 1000% overload
Stainless steel 1.4542 (17-4 PH)
Sealed to IP67
Withstands welding voltages and ESD

Capacity (Emax): 2000, 5000, 10000 kg
Accuracy: Industrial 0.10%
Cable length up to 100 meters
Replaceable load cell cable
Pre-calibrated with signal in kg or N
Calibration independent of cable length
Easy mechanical and electrical installation

Documentation

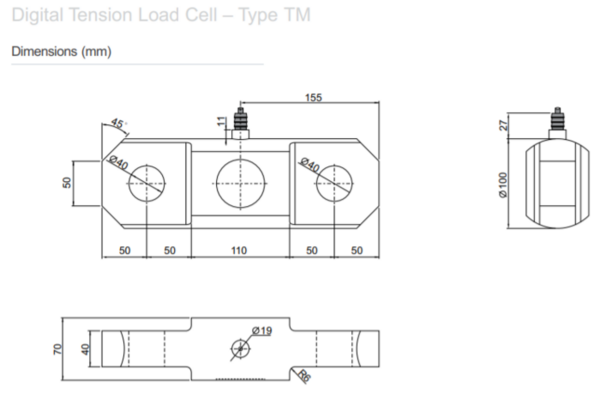

Dimensions (mm)

Specifications


Parameter	Unit	0.10%	0.05%
Rated capacity (E_max)	kg	1000, 2000, 5000, 10000
Safe overload limit	% of E_max	300 to 1000
Safe sideload limit	% of E_max	300 to 500
Combined Accuracy	% of E_max	0.100	0.050
Repeatability	% of E_max	0.030	0.025
Hysteresis	% of E_max	0.055	0.040
Creep 30 min.	% of E_max	0.060	0.040
Temperature effect on zero	% of E_max	0.060	0.055
Temperature effect on sensitivity	% /10°C	0.060	0.055
Compensated temperature range	°C	-10 to 50
Operating temperature range	°C	-50 to 70 (100*)
Deflection at E_max	mm	max 0.10
Measuring rate	Hz	500
Supply	Vdc	24Vdc ±5%
Internal resolution	Bit	24
Material		Stainless steel 17-4PH and AISI316
Protection		IP68
Cable		6 meter standard coaxial RG-58 (Ø6mm) with BNC connector
Maximum cable length	m	100
Weight	kg	10
Output options		EtherNet/IP, PROFINET, EtherCAT, Profibus DP, Modbus TCP/IP, DeviceNet, RS485, 4-20mA, 0-10Vdc

* with Teflon cable

Applications

For dynamic and static measurement in:

Under-hook crane weighing
Force measurement
Cable Tension monitoring
Heavy duty applications
Crane and Hoist Load Testing and monitoring
Weighing suspended vessels
Water Weight/Bag Calibration
Towing and mooring load monitoring
Anchor line tension monitoring
Offshore and Marine applications
Crane Load Calibration
Subsea Vehicle Lifting
Onshore and Offshore wind turbine

Options

Load cell cable length 10, 20, 50 or 100 meters
Special PE load cell cable available for freezing low temperature (can be used down to -50 degrees Celsius)
Special Teflon load cell cable available for very high temperature (can be used up to 100 degrees Celsius)
Customized versions available

Robust High-quality Digital Load Cells

Robust and reliable digital load cells

Our stainless steel, hermetically sealed load cells tolerate high overloads, sideloads and torsion, making them ideal for tough industrial applications across all industries.

Accuracy up to 99.99%

Eilersen digital load cells ensure high accuracy, factory-calibrated and compensated for reliability up to 99.99%, making them a top choice for precision weighing.

Easy installation

With no mounting devices needed, Eilersen's patented capacitive technology simplifies installation. With pre-calibrated, plug-and-play load cells, there's no need for calibration. Eilersen load cells can use cables up to 100 meters without affecting calibration, and cables can be replaced without re-calibration.

No maintenance required

Eilersen digital load cells require no regular maintenance. Integrated diagnostics allow for monitoring of individual load cells, and any issues are quickly flagged for easy troubleshooting.

OIML and atex certified

Eilersen load cells are available with OIML and ATEX/IECEx certifications for use in harzardous environments (zone 1, 2, 21, 22).

Fieldbus interfaces

Eilersen digital load cells support multiple fieldbus interfaces, including Profibus DP, PROFINET, EtherCAT, Ethernet IP, Modbus TCP/IP, 4-20mA, and 0-10Vdc.
