Compression Load Cell DLC (DLC-Ex)

Capacitive load cells with integrated lift-off protection (Patent Pending) for installations e.g. in areas with seismic activity, outdoor silos and high shear mixers. These robust digital compression load cells in EHEDG compliant design are produced in electropolished stainless steel and hermetically sealed to IP68. The load cells type DLC-Ex can be used in ATEX (Ex) and IECEx applications (Zone 1, 2, 21 and 22).

Type: DLC (Non-ATEX) DLC-Ex (ATEX) Capacity (Emax): 50, 100, 150, 250, 500, 1000, 1500, 2000, 3000, 4000, 5000 kg Accuracy: Industrial 0.10%, Precision 0.05%, High Precision 0.025% Overload Tolerance: Up to 300% of rated capacity

Request a quote Print datasheet

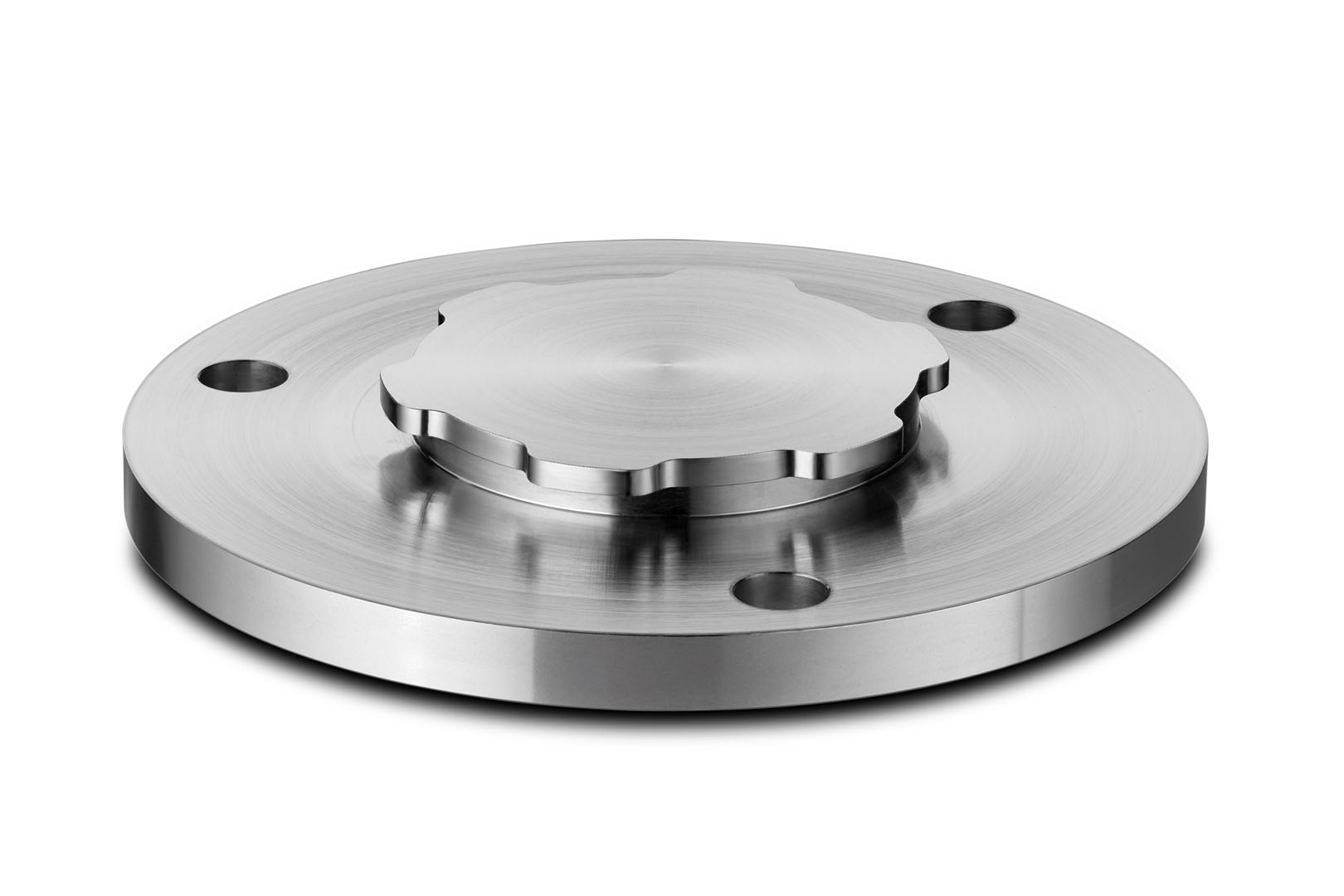

DLC base plate for capacitive load cell type DLC with integrated lift-protection

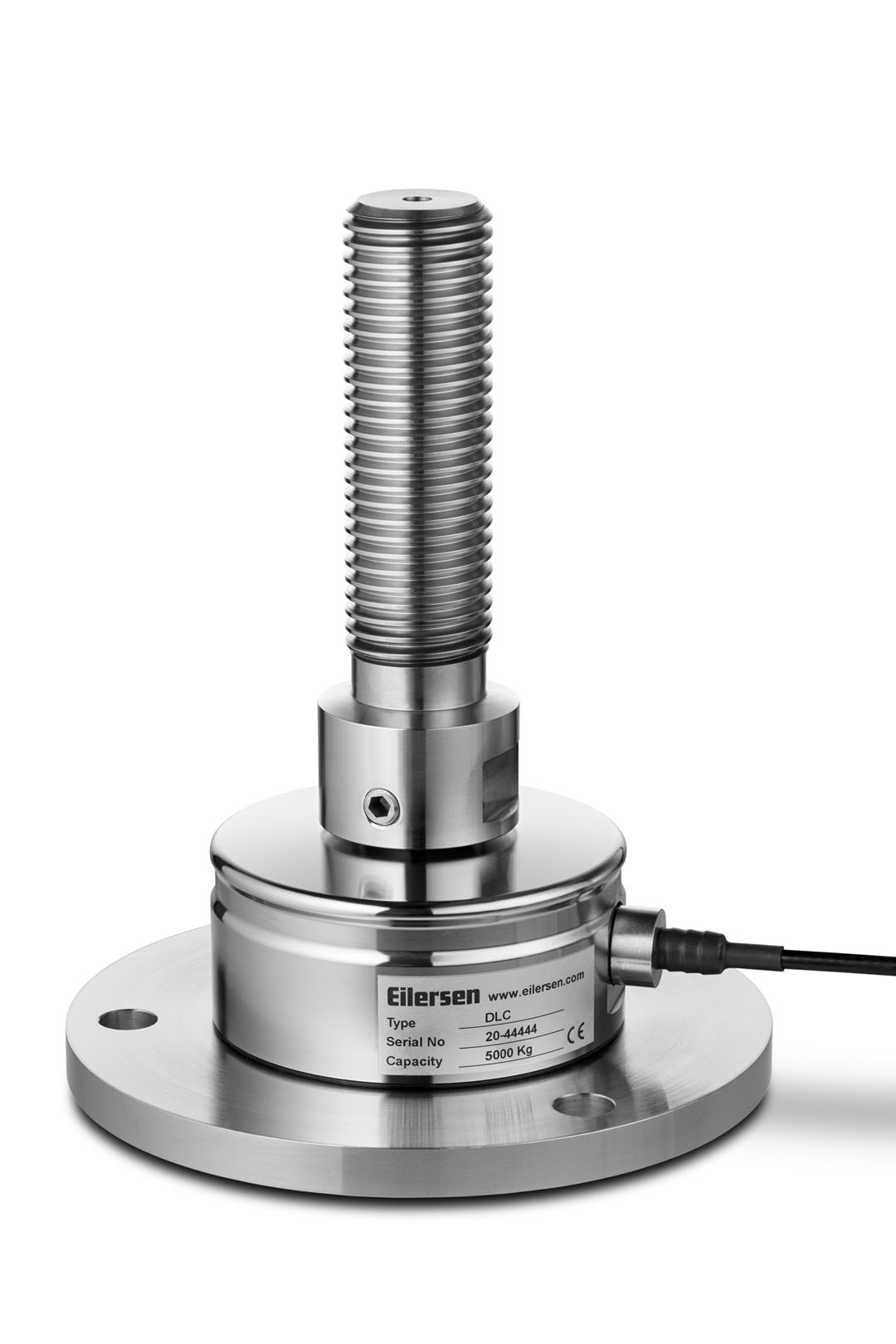

DLC capacitive load cell type DLC with integrated lift-protection with tank leg and base plate

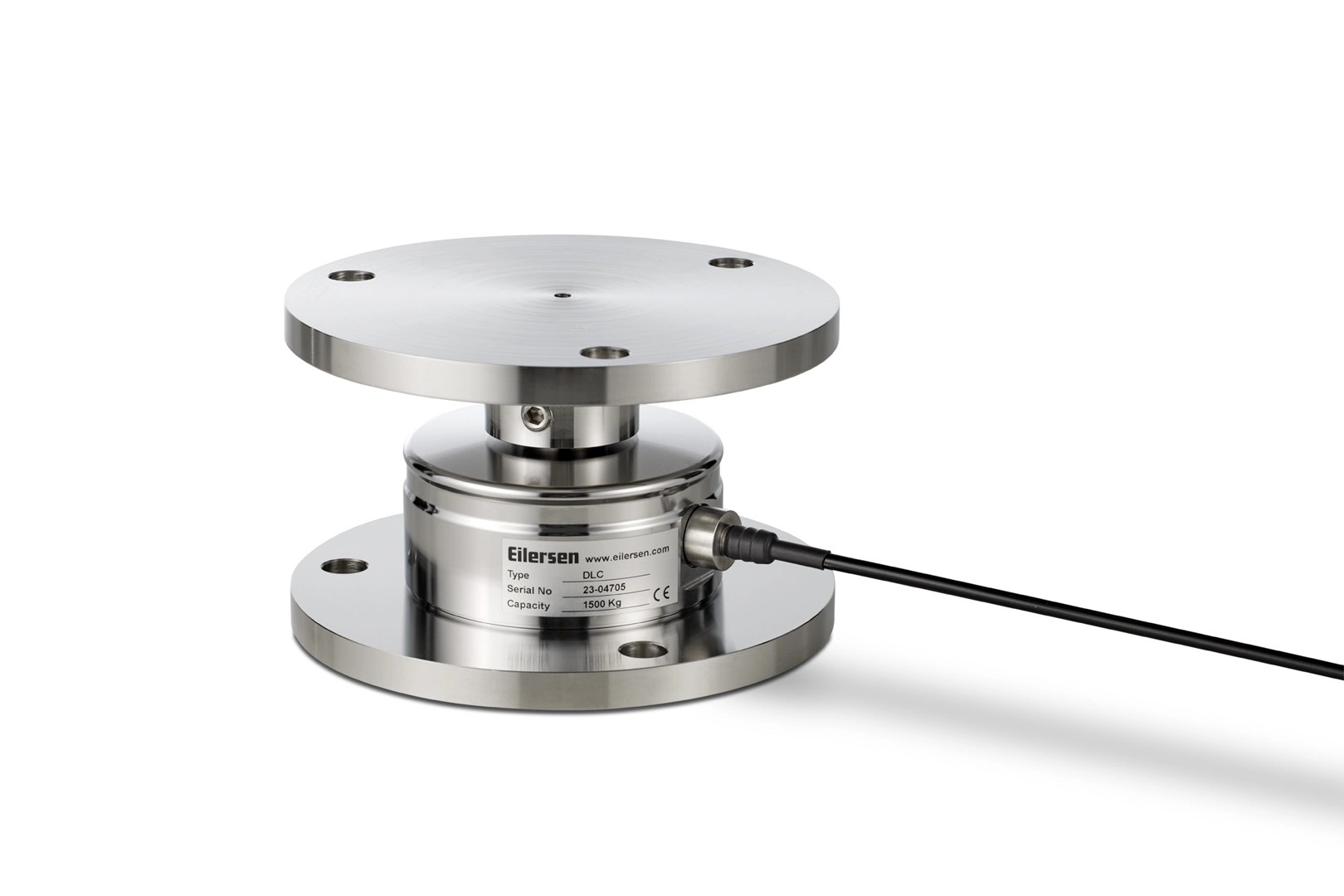

Eilersen Electric DLC with baseplate and topplate

Special Features

Compression load cell with integrated lift-off protection (Patented Load Cell Design)
EHEDG compliant hygienic (aseptic) design without gaps or edges for easy cleaning to minimize the risk of bacteria growth
Developed and manufactured in Denmark
Low profile and hygienic design
High tolerance of up to 300% overload
Robust capacitive technology
Hermetically sealed to IP68
Electropolished stainless steel 1.4542 (17-4 PH)
Laser welded with Duplex 1.4462 stainless steel
ATEX and IECEx certified (Zone 1, 2, 21, 22)
Easy mechanical and electrical installation

High accuracy, High resolution
Capacity (Emax): 50, 100, 150, 250, 500, 1000, 1500, 2000, 3000, 4000, 5000 kg
Accuracy: Industrial 0.10%, Precision 0.05%, High Precision 0.025%
Load cell cable length up to 100 meters
Load cell calibration independent of cable length
Load cell cable replaceable on-site
Withstands welding voltages and ESD
Can be used in both ATEX / IECEx and non-ATEX installations
Can be supplied with Mud resistant and Halogen free cables for offshore installation

Documentation

Dimensions (mm)

Specifications


Parameter	Unit	0.10%	0.05%	0.025%
Rated capacity (E_max)	kg	50, 100, 150, 250, 500, 1000, 1500, 2000, 3000, 4000, 5000
Safe overload limit (compression)	% of E_max	300
Safe overload limit (tension/lift-up)	% of E_max	300
Safe sideload limit (tension or compression)	% of E_max	300
Combined accuracy	% of E_max	0.100	0.050	0.025
Repeatability	% of E_max	0.030	0.025	0.020
Hysteresis	% of E_max	0.055	0.040	0.020
Creep 30 min.	% of E_max	0.060	0.040	0.040
Temperature effect on zero	% /10°C	0.060	0.055	0.055
Temperature effect on sensitivity	% /10°C	0.060	0.055	0.055
Compensated temperature range	°C	-10 to 50
Operating temperature range	°C	-50 to 70 (100*)
Deflection at E_max	mm	0.10
Measuring rate	Hz	500
Supply	Vdc	24Vdc ±5%
Internal resolution	Bit	24
Material		Stainless Steel 17-4 PH and AISI 316
Protection		IP68
Cable		6 meter standard coaxial RG-58 (Ø6mm) with BNC connector
Maximum cable length	m	100
Weight	kg	4.0 **
Output options		EtherNet/IP, PROFINET, EtherCAT, Profibus DP, Modbus TCP/IP, DeviceNet, RS485/422, 4-20mA, 0-10Vdc

* with Teflon cable

** including base plate

Applications

Outdoor silos
Tank weighing
Process weighing
High shear mixers
Big-bag equipment
Filling and dosing
Offshore
Installations in seismic area
Level measurement
Platform scales
Hopper scales
Heavy duty applications
Belt scales

Options

ATEX and IECEx (Zone 1, 2, 21, 22) version type DLC-Ex
ATEX II 2G Ex ia IIC T6 Gb / ATEX II 2D Ex ia IIIC T85°C Db
Standard base plate available
Mounting top
Customized top
Tank leg (different dimensions)
Load cell cable length 10, 20, 50 or 100 meters
Mud resistant and Halogen free cables for offshore installation
Special PE load cell cable available for freezing low temperature (can be used down to -50 degrees Celsius)
Special Teflon load cell cable available for very high temperature (can be used up to 100 degrees Celsius)

Robust High-quality Digital Load Cells

Robust and reliable digital load cells

Our stainless steel, hermetically sealed load cells tolerate high overloads, sideloads and torsion, making them ideal for tough industrial applications across all industries.

Accuracy up to 99.99%

Eilersen digital load cells ensure high accuracy, factory-calibrated and compensated for reliability up to 99.99%, making them a top choice for precision weighing.

Easy installation

With no mounting devices needed, Eilersen's patented capacitive technology simplifies installation. With pre-calibrated, plug-and-play load cells, there's no need for calibration. Eilersen load cells can use cables up to 100 meters without affecting calibration, and cables can be replaced without re-calibration.

No maintenance required

Eilersen digital load cells require no regular maintenance. Integrated diagnostics allow for monitoring of individual load cells, and any issues are quickly flagged for easy troubleshooting.

OIML and atex certified

Eilersen load cells are available with OIML and ATEX/IECEx certifications for use in harzardous environments (zone 1, 2, 21, 22).

Fieldbus interfaces

Eilersen digital load cells support multiple fieldbus interfaces, including Profibus DP, PROFINET, EtherCAT, Ethernet IP, Modbus TCP/IP, 4-20mA, and 0-10Vdc.
