Beam Load Cell SBL (SBL-Ex)

Compact digital beam load cell for single-use bag weighing, process weighing, force measurement, and general weighing in food, biopharmaceutical, and life science applications. This load cell is a shorter version of the BL beam load cell and is manufactured in stainless steel and laser welded (IP68).

Type: SBL Capacity (Emax): 1, 2, 5, 10, 20, 30, 50 kg Accuracy: High Precision 0.025% Overload Tolerance: 500% at 1 kg, 200% at 50 kg capacity

Request a quote Print datasheet

Special Features

Short version of BL load cell
Made in Denmark
Electropolished stainless steel 1.4542 (17-4 PH)
Robust capacitive technology
Patented high reliability capacitive sensor
High tolerance of up to 500% overload
Hermetically sealed to IP68
High accuracy, High resolution
Small deflection at rated capacity

Capacity (Emax): 1, 2, 5, 10, 20, 30, 50 kg
Accuracy: High Precision 0.025%
High resonance frequency (spring rate) for rapid dynamic weighing
Digital filters
Cable length up to 100 meters
Calibration independent of cable length
Replaceable load cell cable
Easy mechanical and electrical installation

Documentation

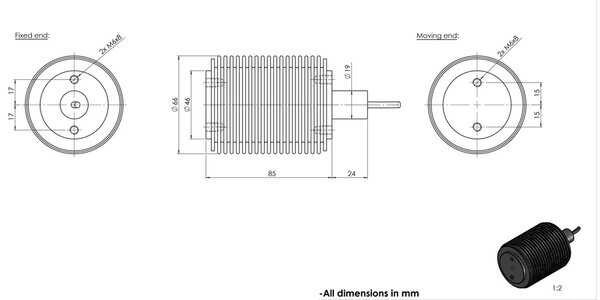

Dimensions (mm)

Specifications

Parameter	Unit	0.025%*
Rated capacity (E_max)	kg	1, 2, 5, 10, 20, 30, 50
Safe overload limit	% of E_max	200 to 500
Safe sideload limit	% of E_max	300 to 500
Combined accuracy	% of E_max	0.025
Repeatability	% of E_max	0.010
Hysteresis	% of E_max	0.017
Creep 30 min.	% of E_max	0.017
Temperature effect on zero	% of E_max	0.035
Temperature effect on sensitivity	% /10°C	0.035
Compensated temperature range	% /10°C	-10 to 50
Operating temperature range	°C	-50 to 60
Deflection at E_max	°C	max 0.10
Measuring rate	mm	500
Supply	Hz	24Vdc ±5%
Internal resolution	Vdc	24
Material	Bit	Stainless Steel 17-4 PH and AISI 316
Protection		IP68
Cable		6 meter standard coaxial RG-58 (Ø6mm) with BNC connector
Maximum Cable Length		100
Weight	kg	1.5
Output Options		EtherNet/IP, PROFINET, EtherCAT, Profibus DP, Modbus TCP/IP, DeviceNet, RS485/422, 4-20mA, 0-10Vdc

* Higher accuracies on request

Applications

Web tension measurement
Force measurement
Dynamic weighing
Process weighing
Small tanks and vessels
Vibration sorters
Filling and dosing

Options

Load cell cable length 10, 20, 50 or 100 meters
Special PE load cell cable available for freezing low temperature (can be used down to -50 degrees Celsius)
Special Teflon load cell cable available for very high temperature (can be used up to 100 degrees Celsius)

Robust High-quality Digital Load Cells

Robust and reliable digital load cells

Our stainless steel, hermetically sealed load cells tolerate high overloads, sideloads and torsion, making them ideal for tough industrial applications across all industries.

Accuracy up to 99.99%

Eilersen digital load cells ensure high accuracy, factory-calibrated and compensated for reliability up to 99.99%, making them a top choice for precision weighing.

Easy installation

With no mounting devices needed, Eilersen's patented capacitive technology simplifies installation. With pre-calibrated, plug-and-play load cells, there's no need for calibration. Eilersen load cells can use cables up to 100 meters without affecting calibration, and cables can be replaced without re-calibration.

No maintenance required

Eilersen digital load cells require no regular maintenance. Integrated diagnostics allow for monitoring of individual load cells, and any issues are quickly flagged for easy troubleshooting.

OIML and atex certified

Eilersen load cells are available with OIML and ATEX/IECEx certifications for use in harzardous environments (zone 1, 2, 21, 22).

Fieldbus interfaces

Eilersen digital load cells support multiple fieldbus interfaces, including Profibus DP, PROFINET, EtherCAT, Ethernet IP, Modbus TCP/IP, 4-20mA, and 0-10Vdc.
