Compression Load Cell DMC (DMC-Ex) 125

Capacitive load cells with integrated lift-off protection (patented) designed for large capacities such as process weighing in areas with seismic activity and outdoor silos. The robust digital load cells are made of stainless steel and hermetically sealed (IP68) for hygienic installations as well as installations in harsh environments and general process weighing. The load cells are also made in hygienic (aseptic) design according to EHEDG guidelines. Load cell type DMC-Ex can be used in ATEX (Ex) and IECEx applications (zones 1, 2, 21 and 22).

Type: DMC 125 (Non-ATEX) DMC-Ex 125 (ATEX) Capacity (Emax): 6000, 8000, 10000, 12000, 15000, 20000 kg Accuracy: Industrial 0.10%, Precision 0.05%, High Precision 0.025% Overload Tolerance: Up to 300% of rated capacity

Request a quote Print datasheet

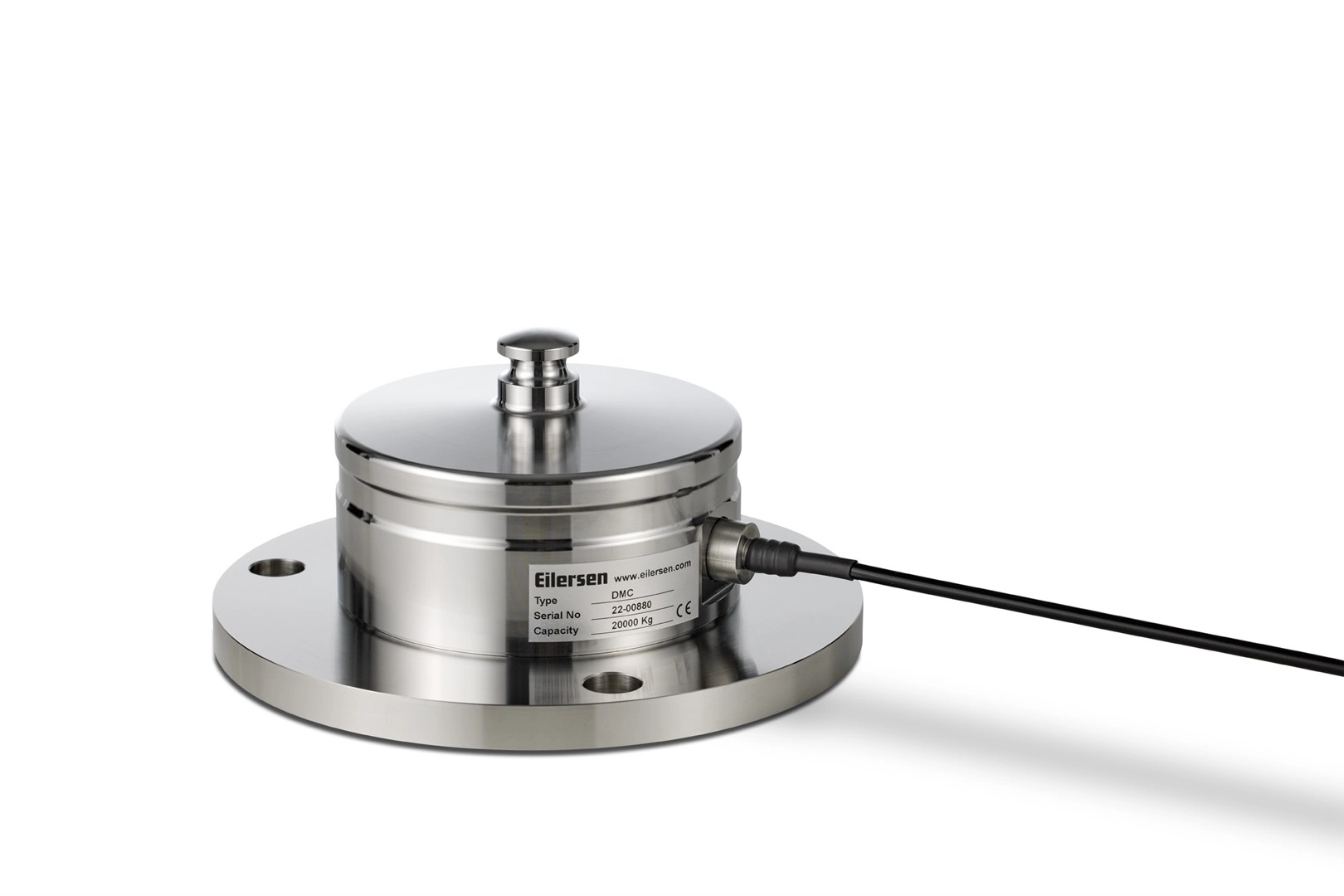

Eilersen compression load cell DMC 125 with integrated lift-protection with base plate

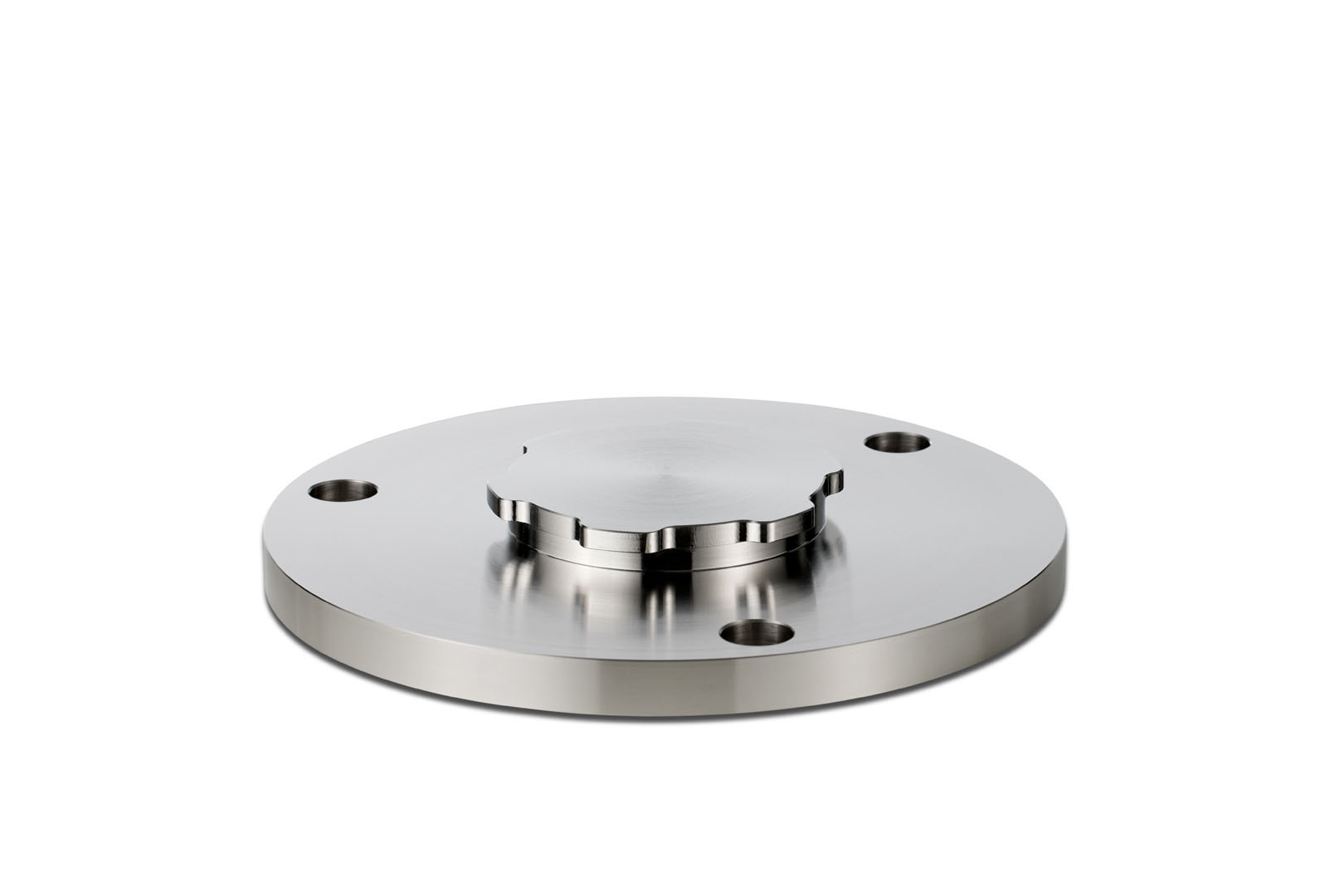

Base plate for DMC 125 with integrated lift-protection

Special Features

Compression load cell with integrated lift-off protection (patented load cell design)
EHEDG compliant hygienic (aseptic) design without gaps or edges for easy cleaning to minimize the risk of bacteria growth
Developed and manufactured in Denmark
Low profile and hygienic design
High tolerance of up to 300% overload
Robust capacitive technology
Hermetically sealed to IP68
Electropolished stainless steel 1.4542 (17-4 PH)
Laser welded with Duplex 1.4462 stainless steel
ATEX and IECEx certified (Zone 1, 2, 21, 22)
Easy mechanical and electrical installation

High accuracy, High resolution
Capacity (Emax): 6000, 8000, 10000, 12000, 15000, 20000 kg
Accuracy: Industrial 0.10%, Precision 0.05%, High Precision 0.025%
Load cell cable length up to 100 meters
Load cell calibration independent of cable length
Load cell cable replaceable on-site
Withstands welding voltages and ESD
Can be used in both ATEX / IECEx and non-ATEX installations
Can be supplied with Mud resistant and Halogen free cables for offshore installation

Documentation

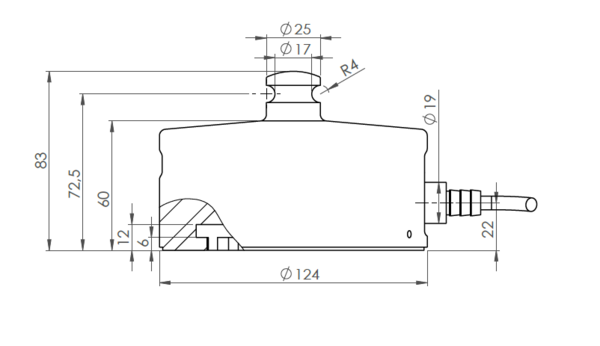

Dimensions (mm)

Specifications

Parameter	Unit	0.10%	0.05%	0.025%*
Rated capacity (E_max)	kg	6000, 8000, 10000, 12000, 15000, 20000
Safe overload limit	% of E_max	up to 300
Safe sideload limit	% of E_max	up to 300
Combined Accuracy	% of E_max	0.100	0.050	0.025
Repeatability	% of E_max	0.030	0.025	0.020
Hysteresis	% of E_max	0.055	0.040	0.020
Creep 30 min.	% of E_max	0.060	0.050	0.050
Temperature effect on zero	% /10°C	0.060	0.055	0.055
Temperature effect on sensitivity	% /10°C	0.060	0.055	0.055
Compensated temperature range	°C	-10 to 50
Operating temperature range	°C	-50 to 70
Deflection at E_max	mm	max 0.10
Measuring rate	Hz	500
Supply	Vdc	24Vdc ±5%
Internal resolution	Bit	24
Material		Stainless Steel 17-4 PH and AISI 316
Protection		IP68
Cable		6 meter standard coaxial RG-58 (Ø6mm) with BNC connector
Maximum load cell cable length	m	100
Weight	kg	8.5 **
Output options		EtherNet/IP, PROFINET, EtherCAT, Modbus TCP/IP, Profibus DP, DeviceNet, RS485, 4-20mA, 0-10Vdc

* 6, 8, 10 ton capacity

** inclduding special base plate with lock

Applications

Outdoor silos
Tank weighing
Process weighing
High shear mixers
Big-bag equipment
Filling and dosing
Offshore
Installations in seismic area
Level measurement
Platform scales
Hopper scales
Heavy duty applications

Options

ATEX and IECEx (Zone 1, 2, 21, 22) version type DMC-Ex
ATEX II 2G Ex ia IIC T6 Gb / ATEX II 2D Ex ia IIIC T85°C Db
Standard base plate available
Mounting top
Customized top
Load cell cable length 10, 20, 50 or 100 meters
Mud resistant and Halogen free cables for offshore installation
Special PE load cell cable available for freezing low temperature (can be used down to -50 degrees Celsius)
Special Teflon load cell cable available for very high temperature (can be used up to 100 degrees Celsius)

Robust High-quality Digital Load Cells

Robust and reliable digital load cells

Our stainless steel, hermetically sealed load cells tolerate high overloads, sideloads and torsion, making them ideal for tough industrial applications across all industries.

Accuracy up to 99.99%

Eilersen digital load cells ensure high accuracy, factory-calibrated and compensated for reliability up to 99.99%, making them a top choice for precision weighing.

Easy installation

With no mounting devices needed, Eilersen's patented capacitive technology simplifies installation. With pre-calibrated, plug-and-play load cells, there's no need for calibration. Eilersen load cells can use cables up to 100 meters without affecting calibration, and cables can be replaced without re-calibration.

No maintenance required

Eilersen digital load cells require no regular maintenance. Integrated diagnostics allow for monitoring of individual load cells, and any issues are quickly flagged for easy troubleshooting.

OIML and atex certified

Eilersen load cells are available with OIML and ATEX/IECEx certifications for use in harzardous environments (zone 1, 2, 21, 22).

Fieldbus interfaces

Eilersen digital load cells support multiple fieldbus interfaces, including Profibus DP, PROFINET, EtherCAT, Ethernet IP, Modbus TCP/IP, 4-20mA, and 0-10Vdc.
