Web Tension Load Cell TL 101B

The robust digital TL 101B load cell is a heavy duty version designed primarily for measuring web tension. The TL 101B load cell has same dimensions as the ABB PFTL 101B load cell.

Type: TL 101B Capacity (Emax): 2, 5, 10, 20 kN Accuracy: Industrial 0.25% Overload Tolerance: Up to 1000% of rated capacity

Request a quote Print datasheet

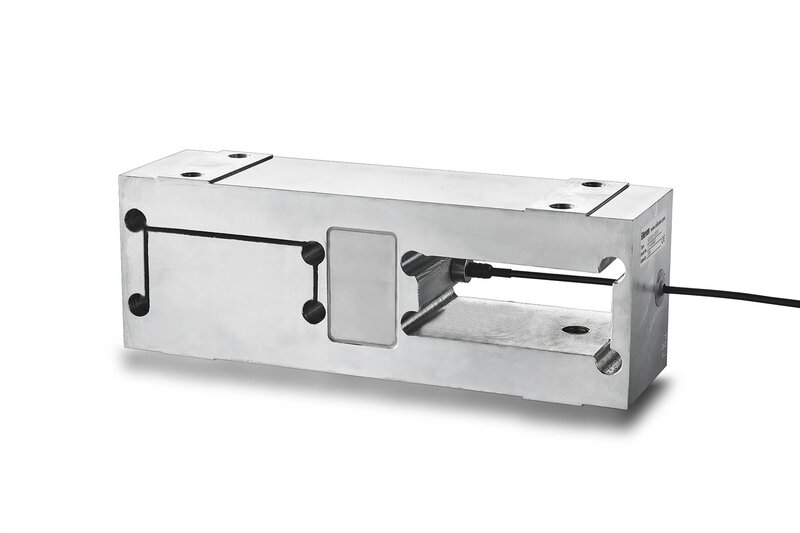

Eilersen web tension load cell TL 101B (SLCAD 101B)

Special Features

Made in Denmark
Replaces web tension load cell type SLCAD 101B
Robust capacitive technology
Patented high reliability capacitive sensor
High tolerance of up to 1000% overload
Sealed to IP67
Withstands welding voltages and ESD

Same dimensions as ABB PFTL 101B
Capacity (Emax): 2, 5, 10, 20 kN
Accuracy: Industrial 0.25%, Precision 0.10%
Cable length up to 100 meters
Pre-calibrated with signal in kg or N
Calibration independent of cable length
Easy mechanical and electrical installation

Documentation

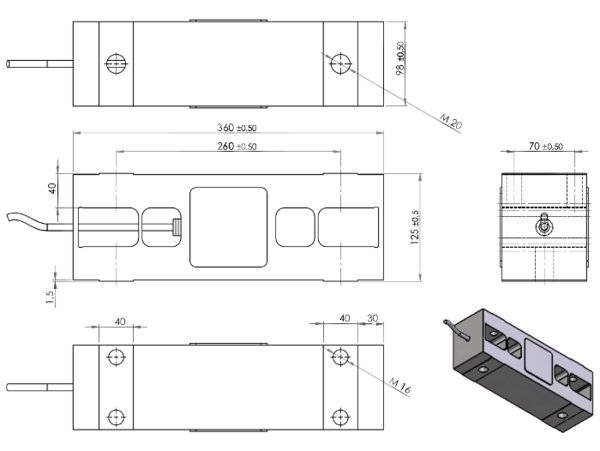

Dimensions (mm)

Specifications

Parameter	Unit	0.25%*
Rated capacity (E_max)	N	2000, 5000, 10000, 20000
Safe overload limit	% of E_max	Up to 300
Safe sideload limit	% of E_max	Up to 300
Combined accuracy	% of E_max	0.25*
Repeatability	% of E_max	0.02
Hysteresis	% of E_max	0.04
Creep	% of E_max	0.03
Compensated temperature range	°C	-10 to 50 (100**)
Operating temperature range	°C	-50 to 70 (100**)
Measuring rate	Hz	200
Supply	Vdc	24VDC ±5%
Internal resolution	bit	24
Material		Electroplated steel
Protection		IP67
Cable		6 meter standard coaxial RG-58 (Ø6mm) with BNC connector
Maximum load cell cable length	m	100
Weight	kg	25.5
Output options		EtherNet/IP, PROFINET, EtherCAT, Modbus TCP/IP, Profibus DP, DeviceNet, RS485, 4-20mA, 0-10Vdc

* higher accuracy available on request
** when equipped with Teflon cable

Applications

Web tension control
Tension measurement
Offshore/Marine applications
Force measurement

The TL 101 range of load cells are designed primarily for measuring the horizontal forces of web tension. The sensor is mounted in between the pillow block bearing and the machine frame.

Load cells for measuring horizontal forces such as the Eilersen TL 101 load cells, are ideal in applications with high tare loads and relatively small tensions in for example paper machines.

In applications where high overloads often occur, the high overload tolerance of the Eilersen load cell adds reliability and minimizes the need for maintenance.

If no or only a small horizontal resultant force is present, you can mount the load cell on a slant to give rise to one.

Eilersen provides software free of charge for calculating the forces in web tension applications:

The use of this software for calculation of web tension and calibration factors or selection of sensors are at the users OWN RISK.

Eilersen Electric AS assumes no responsibility for any loss or damage resulting from the use of this software.
In order to reduce the risk please send the input data and the results to Eilersen Electric A/S for review and confirmation.

Options

Free application software
Customized versions available
Load cell cable length 10, 20, 50 or 100 meters
Special PE load cell cable available for freezing low temperature (can be used down to -50 degrees Celsius)
Special Teflon load cell cable available for very high temperature (can be used up to 100 degrees Celsius)
