Single Point Load Cell XBL (XBL-Ex)

The robust digital single point load cell type XBL in stainless steel is hermetically sealed to IP68K. The load cell is developed for machine builders who have tasks within dynamic weighing, multihead weighers, factory automation, packaging machines, filing and dosing, flow measurement, bench and platform scales, conveyor scales, process weighing and check weighers. ATEX (Ex) and IECEx versions are available.

Type: XBL (Non-ATEX) XBL-Ex (ATEX) Capacity (Emax): 3, 5, 10, 15, 20, 30, 50, 100 kg Accuracy: Industrial 0.025%, Precision 0.015%, High Precision 0.010% Overload Tolerance: Up to 1000% of rated capacity

Request a quote Print datasheet

Special Features

Made in Denmark
Patented load cell design
Electropolished stainless steel 1.4542 (17-4 PH)
Laser welded with Duplex 1.4462 stainless steel
ATEX and IECEx certified (Zone 1, 2, 21, 22)
Robust capacitive technology
High tolerance of up to 1000% overload
High accuracy, High resolution
Laser welded (IP68)
Replaceable load cell cable

Capacity (Emax): 3, 5, 10, 20, 30, 50, 100 kg
Accuracy: Industrial 0.025%, Precision 0.015%, High Precision 0.010%
Small deflection at rated capacity
High resonance frequency (spring rate) for rapid dynamic weighing
Easy mechanical and electrical installation
Digital filters
Can be used in both ATEX / IECEx and non-ATEX installations

Documentation

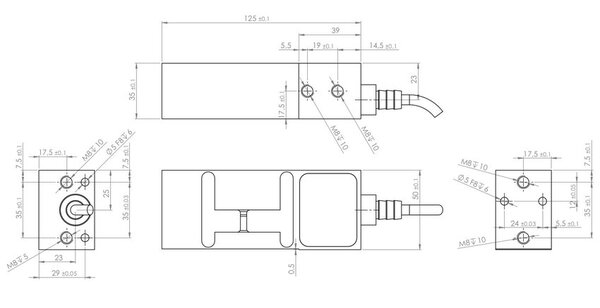

Dimensions (mm)

Specifications


Parameter	Unit	0.025%	0.015%
Rated capacity (E_max)	kg	3, 5, 10, 15, 20, 30, 50, 100*
Safe overload limit	% of E_max	300 to 1000
Safe siderload limit	% of E_max	500 to 2000
Minimum dead load	% of E_max	0
Combined Accuracy	% of E_max	0.025	0.015
Repeatability	% of E_max	0.012	0.010
Hysteresis	% of E_max	0.013	0.008
Creep 30 min.	% of E_max	0.015	0.012
Temperature effect on zero	% /10°C	0.050	0.035
Temperature effect on sensitivity	% /10°C	0.050	0.050
Compensated temperature range	°C	-10 to 50
Operating temperature range	°C	-50 to 70 (100**)
Deflection at E_max	mm	max 0.10
Measuring rate	Hz	500
Supply	Vdc	24Vdc ±5%
Internal resolution	Bit	24
Material		Stainless steel 17-4PH and AISI316
Protection		IP68
Cable		6 meter standard coaxial RG-58 (Ø6mm) with BNC connector
Maximum cable length	m	100
Weight	kg	1.5
Output options		EtherNet/IP, PROFINET, EtherCat, Profibus DP, Modbus TCP/IP, RS485, 4-20mA, 0-10Vdc

* available in other capacities upon request

** with Teflon cable

Applications

Dynamic weighing
Multihead weighers
Factory Automation
Packaging machines
Filling and dosing
Flow measurement
Bench and platform scales
Conveyor scales
Process weighing
Check weighers

Options

ATEX and IECEx (Zone 1, 2, 21, 22) version type XBL-Ex
ATEX II 2G Ex ia IIC T6 / ATEX II 2D Ex iaD 21 T85°C
Customized versions available
Load cell cable length 10, 20, 50 or 100 meters
Special PE load cell cable available for freezing low temperature (can be used down to -50 degrees Celsius)
Special Teflon load cell cable available for very high temperature (can be used up to 100 degrees Celsius)

Robust High-quality Digital Load Cells

Robust and reliable digital load cells

Our stainless steel, hermetically sealed load cells tolerate high overloads, sideloads and torsion, making them ideal for tough industrial applications across all industries.

Accuracy up to 99.99%

Eilersen digital load cells ensure high accuracy, factory-calibrated and compensated for reliability up to 99.99%, making them a top choice for precision weighing.

Easy installation

With no mounting devices needed, Eilersen's patented capacitive technology simplifies installation. With pre-calibrated, plug-and-play load cells, there's no need for calibration. Eilersen load cells can use cables up to 100 meters without affecting calibration, and cables can be replaced without re-calibration.

No maintenance required

Eilersen digital load cells require no regular maintenance. Integrated diagnostics allow for monitoring of individual load cells, and any issues are quickly flagged for easy troubleshooting.

OIML and atex certified

Eilersen load cells are available with OIML and ATEX/IECEx certifications for use in harzardous environments (zone 1, 2, 21, 22).

Fieldbus interfaces

Eilersen digital load cells support multiple fieldbus interfaces, including Profibus DP, PROFINET, EtherCAT, Ethernet IP, Modbus TCP/IP, 4-20mA, and 0-10Vdc.
