Beam Load Cell BM (BM-Ex) 80

Robust digital heavy duty ATEX certified beam load cell produced in stainless steel and hermetically sealed to IP68 for process weighing, industrial weighing and tough applications such as on-board truck weighing, offshore, steel industry etc. The BM-Ex 80 load cell can be used in ATEX (Ex) IECEx and non-ATEX applications.

Type: BM 80 (Non-ATEX) BM-Ex 80 (ATEX) Capacity (Emax): 5000, 6000, 7000 kg Accuracy: Industrial 0.10%, Precision 0.05%, High Precision 0.025% Overload Tolerance: Up to 500% of rated capacity

Request a quote Print datasheet

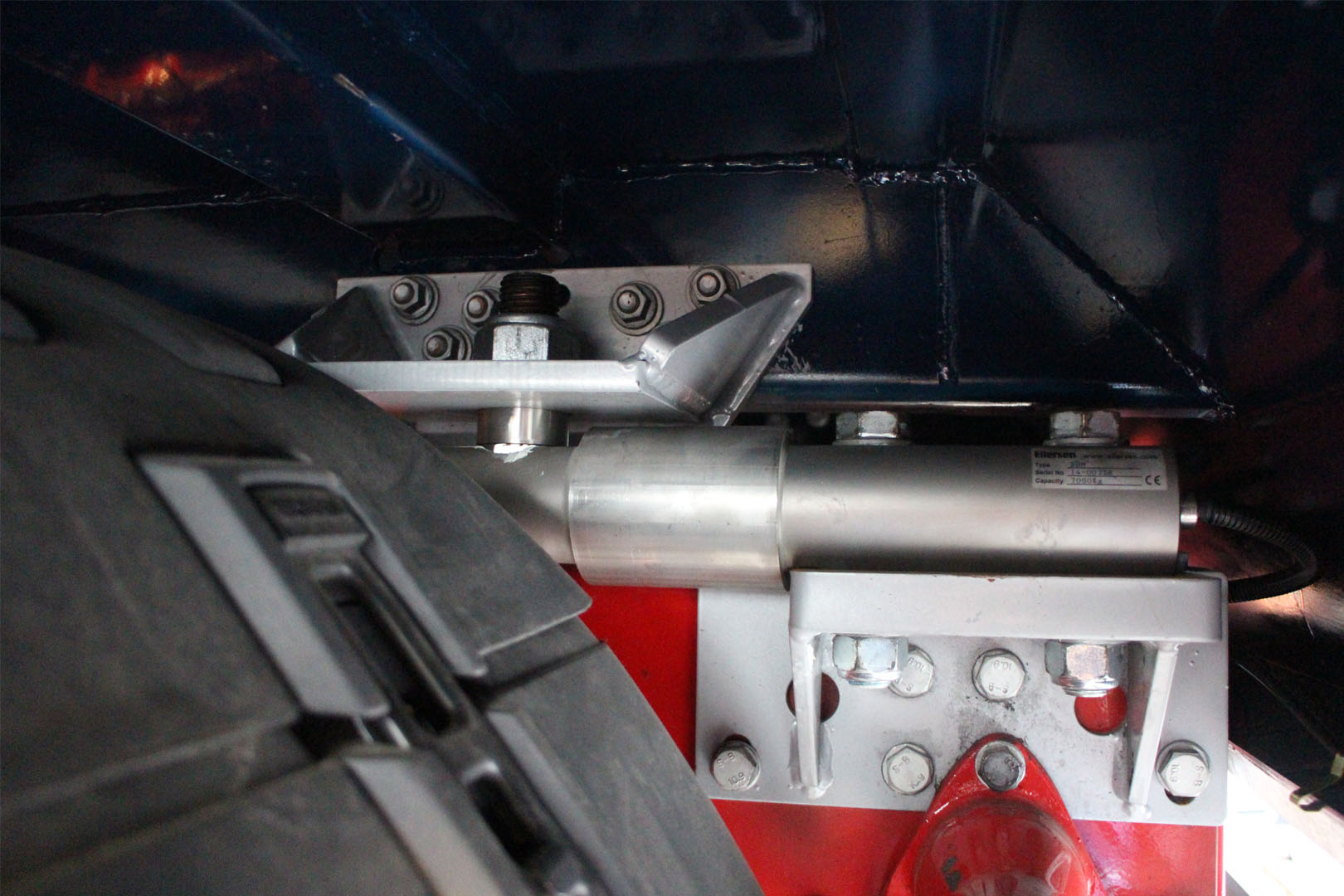

Fixed mounting of Eilersen load cells shown on truck with an Eilersen chassis mounted weighing system

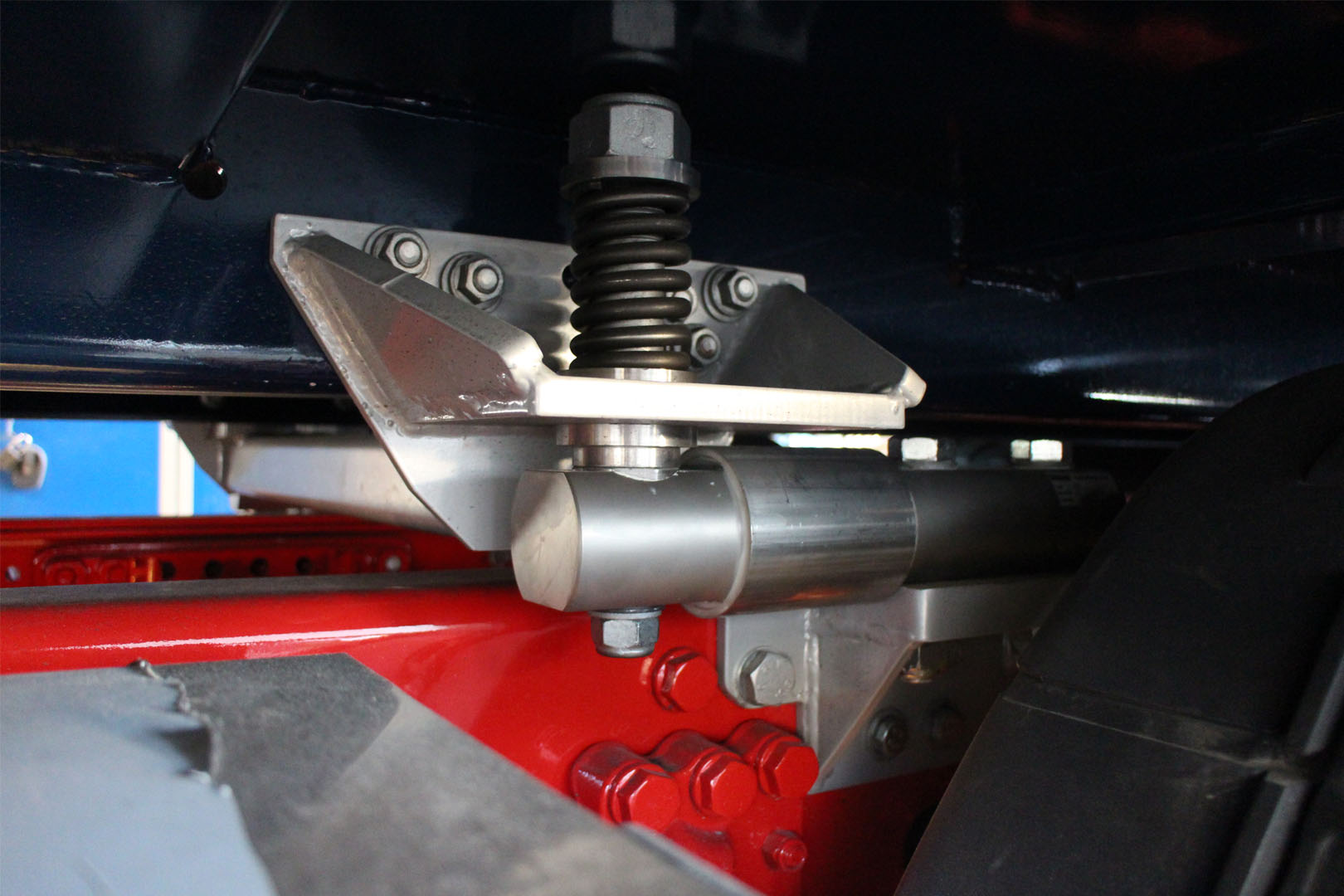

Flexible mounting of Eilersen load cells shown on truck with an Eilersen chassis mounted weighing system

Special Features

Made in Denmark
ATEX and IECEx certified (Zone 1, 2, 21, 22)
Stainless steel 1.4542 (17-4 PH)
Robust capacitive technology
High tolerance of up to 500% overload
Hermetically sealed to IP68
Laser welded with Duplex 1.4462 stainless steel
High accuracy, High resolution
Can be supplied with Mud resistant and Halogen free cables for offshore installation

Digital filters
Cable length up to 100 meters
Capacity (Emax): 5000, 6000, 7000 kg
Accuracy: Industrial 0.10%, Precision 0.05%, High Precision 0.025%
Calibration independent of cable length
Replaceable load cell cable
Easy mechanical and electrical installation
Withstands welding voltages and ESD
Can be used in both ATEX / IECEx and non-ATEX installations

Documentation

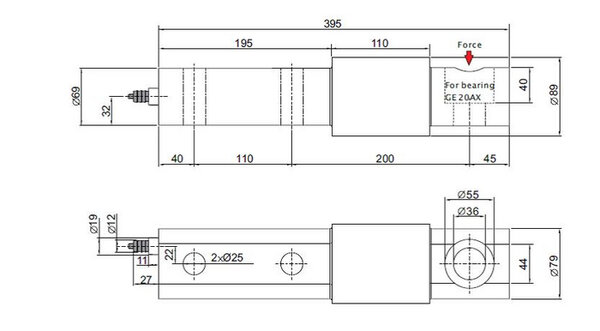

Dimensions (mm)

Specifications


Parameter	Unit	0.10%	0.05%	0.025%
Rated capacity (E_max)	kg	5000, 6000, 7000
Safe overload limit	% of E_max	300 to 500
Safe sideload limit	% of E_max	500 to 1000
Minimum dead load	% of E_max	0
Combined accuracy	% of E_max	0.100	0.050	0.025
Repeatability	% of E_max	0.030	0.025	0.015
Hysteresis	% of E_max	0.050	0.030	0.018
Creep 30 min.	% of E_max	0.040	0.030	0.020
Temperature effect on zero	% /10°C	0.060	0.055	0.040
Temperature effect on sensitivity	% /10°C	0.060	0.055	0.040
Compensated temperature range	°C	-10 to 50
Operating temperature range	°C	-50 to 70 (100*)
Deflection at E_max	mm	0.10
Measuring rate	Hz	500
Supply	Vdc	24Vdc ±5%
Internal resolution	Bit	24
Material		Stainless Steel 17-4 PH and AISI 316
Protection		IP68
Cable		6meter standard coaxial RG-58 (Ø6mm) with BNC connector
Maximum load cell cable length	m	100
Weight	kg	11.95
Output options		EtherNet/IP, PROFINET, EtherCAT, Profibus DP, Modbus TCP/IP, DeviceNet, RS485, 4-20mA, 0-10Vdc
* with Teflon cable

Applications

Dynamic weighing
Process weighing
Mobile weighing
Vibration feeder
Big-bag equipment
Hopper scales
Conveyor scales
Heavy duty platform scales
Heavy duty applications
Offshore applications

Options

ATEX and IECEx (Zone 1, 2, 21, 22) version type BM-Ex
ATEX II 2G Ex ia IIC T6 Gb / ATEX II 2D Ex IIIC T85°C Db
Mounting kits available
Customized versions available
Load cell cable length 10, 20, 50 or 100 meters
Mud resistant and Halogen free cables for offshore installation
Special PE load cell cable available for freezing low temperature (can be used down to -50 degrees Celsius)
Special Teflon load cell cable available for very high temperature (can be used up to 100 degrees Celsius)

Robust High-quality Digital Load Cells

Robust and reliable digital load cells

Our stainless steel, hermetically sealed load cells tolerate high overloads, sideloads and torsion, making them ideal for tough industrial applications across all industries.

Accuracy up to 99.99%

Eilersen digital load cells ensure high accuracy, factory-calibrated and compensated for reliability up to 99.99%, making them a top choice for precision weighing.

Easy installation

With no mounting devices needed, Eilersen's patented capacitive technology simplifies installation. With pre-calibrated, plug-and-play load cells, there's no need for calibration. Eilersen load cells can use cables up to 100 meters without affecting calibration, and cables can be replaced without re-calibration.

No maintenance required

Eilersen digital load cells require no regular maintenance. Integrated diagnostics allow for monitoring of individual load cells, and any issues are quickly flagged for easy troubleshooting.

OIML and atex certified

Eilersen load cells are available with OIML and ATEX/IECEx certifications for use in harzardous environments (zone 1, 2, 21, 22).

Fieldbus interfaces

Eilersen digital load cells support multiple fieldbus interfaces, including Profibus DP, PROFINET, EtherCAT, Ethernet IP, Modbus TCP/IP, 4-20mA, and 0-10Vdc.
