Heavy Duty Load Cell SDLX

The robust digital load cell type SDLX is produced in stainless steel and designed for the extremely though environment in lift systems for waste management with shock loads and vibrations. The load cell can also be used in general industrial weighing applications. OIML certified to class C3 according to OIML R60.

Type: SDLX Capacity (Emax): 300 kg Accuracy: 0.025% C3 Overload Tolerance: Up to 500% of rated capacity

Request a quote Print datasheet

Special Features

Made in Denmark
Robust capacitive technology
Patented high reliability capacitive sensor
OIML R60 accuracy classes up to C3
High tolerance of up to 500% overload
Stainless steel 1.4542 (17-4 PH)
Laser welded with Duplex 1.4462 stainless steel
Hermetically sealed to IP68

High accuracy, High resolution
Digital filters
Capacity (Emax): 300 kg
Accuracy: OIML class C3
Cable length up to 100 meters
Calibration independent of cable length
Replaceable load cell cable
Easy mechanical and electrical installation
Withstands welding voltages and ESD
Optional special load cell cable

Documentation

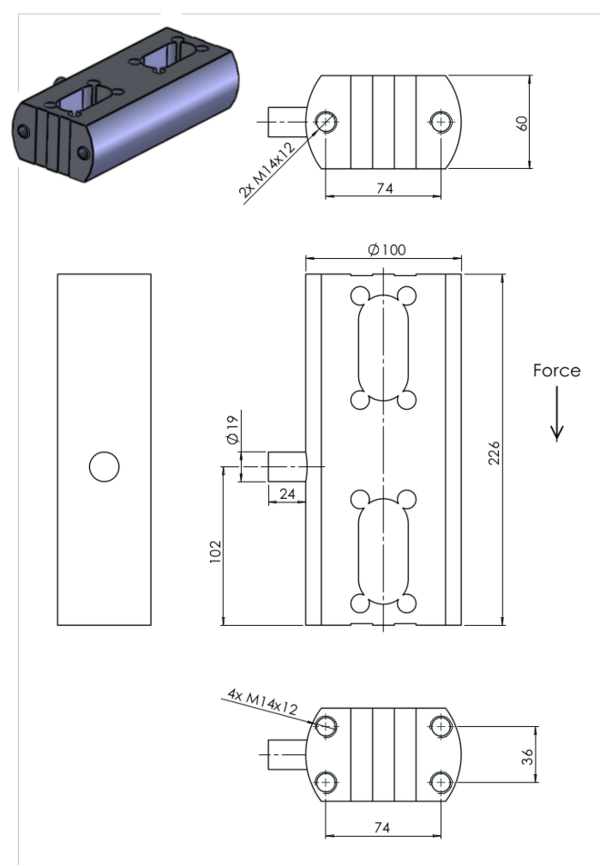

Dimensions (mm)

Specifications

Parameter	Unit	C3 0.25%
Rated capacity (E_max)	kg	300
Safe overload limit	% of E_max	250
Safe sideload limit	% of E_max	250
Combined Accuracy	% of E_max	0.025
Repeatability	% of E_max	0.010
Hysteresis	% of E_max	0.017
Creep 30 min.	% of E_max	0.017
Temperature effect on zero	% /10°C	0.035
Temperature effect on sensitivity	% /10°C	0.035
Compensated temperature range	°C	-10 to 50
Operating temperature range	°C	-50 to 70 (100*)
Deflection at E_max	mm	Max 0.10
Measuring rate	Hz	200
Supply	Vdc	24Vdc ±5%
Internal resolution	Bit	24
Material		Stainless Steel 17-4 PH and AISI 316
Protection		IP68
Cable		6 meter standard coaxial RG-58 (Ø6mm) with BNC connector
Maximum load cell cable length	m	100
Weight	kg	14
Output options		EtherNet/IP, PROFINET, Profibus DP, Modbus TCP/IP, DeviceNet, RS485, 4-20mA, 0-10Vdc

* with Teflon cable

Applications

On-board truck weighing
Process weighing
Offshore/Marine applications
Force measurement
Mobile weighing
Heavy duty applications

Options

Customized load cell capacity
Load cell cable length 10, 20, 50 or 100 meters
Load cell cable type
Special PE load cell cable available for freezing low temperature (can be used down to -50 degrees Celsius)
Special Teflon load cell cable available for very high temperature (can be used up to 100 degrees Celsius)

Robust High-quality Digital Load Cells

Robust and reliable digital load cells

Our stainless steel, hermetically sealed load cells tolerate high overloads, sideloads and torsion, making them ideal for tough industrial applications across all industries.

Accuracy up to 99.99%

Eilersen digital load cells ensure high accuracy, factory-calibrated and compensated for reliability up to 99.99%, making them a top choice for precision weighing.

Easy installation

With no mounting devices needed, Eilersen's patented capacitive technology simplifies installation. With pre-calibrated, plug-and-play load cells, there's no need for calibration. Eilersen load cells can use cables up to 100 meters without affecting calibration, and cables can be replaced without re-calibration.

No maintenance required

Eilersen digital load cells require no regular maintenance. Integrated diagnostics allow for monitoring of individual load cells, and any issues are quickly flagged for easy troubleshooting.

OIML and atex certified

Eilersen load cells are available with OIML and ATEX/IECEx certifications for use in harzardous environments (zone 1, 2, 21, 22).

Fieldbus interfaces

Eilersen digital load cells support multiple fieldbus interfaces, including Profibus DP, PROFINET, EtherCAT, Ethernet IP, Modbus TCP/IP, 4-20mA, and 0-10Vdc.
